ITECH
ITECH IT8400 Series – High Performance DC Electronic Load
IT8400 high-performance DC electronic load has two voltage levels, 600V and 1200V. It supports master-slave connection in parallel with power from 6 kW to 600 kW, and is capable of fast double power loading. It has three current readback ranges with a resolution of up to 40uA. IT8400 has faster loop response and current rising and falling speed. It supports up to 8 working modes. It also has dynamic mode, List, OCP, OPP test, automatic test and battery test functions. IT8400 has built-in CAN, LAN, GPIB, USB, RS232 and analog interfaces, suitable for remote control and system building. In addition, the full protection function makes it well matched with the test of fuel cell, power battery discharge, DC charging pile, BOC, power electronics, solar, automotive high-voltage components, DC-DC, motor and other similar applications.
ITECH IT7600 Series – High Performance Programmable AC Power Supplies
ITECH’s IT7600 series high performance programmable AC power supplies, adopt advanced digital signal processing technology, with frequency up to 10-5000 Hz, built-in power meter and large-screen oscilloscope function. Power up to 54 kVA and support master-slave parallel, which can provide high-capacity single-phase or three-phase AC output. The IT7600 has built-in arbitrary waveform generator to simulate a variety of waveforms; as well as strong measurement and analysis functions.
ITECH IT7900 Series – Regenerative Grid Simulator
The IT7900 series is a programmable, four-quadrant grid simulator. It is also a four-quadrant power amplifier, which can be used to test various grid-connected equipment. For example, PCS, energy storage system, microgrid, BOBC (V2X), PHiL, etc. With the islanding mode (RLC settable), a single unit of IT7900 can realize the anti-islanding protection test. The power density of IT7900 series is very high, 15kVA in 3U. After parallel connection, the power can be extended up to 960kVA.
ITECH IT7900E Series – Regenerative Grid Simulator
The IT7900E series is a programmable, four-quadrant grid simulator and power amplifier designed to test various grid-connected equipment, such as PCS, energy storage systems, microgrids, V2X (Vehicle-to-Everything), PHiL, and more. Utilizing advanced SiC technology, a single unit of the IT7900E can perform anti-islanding protection tests through its islanding mode with adjustable RLC settings. The series boasts high power density, delivering 6kVA in a 1U unit and 15kVA in a 3U unit. Through parallel connection, its power capacity can be expanded up to 960kVA.
The IT7900E series offers a variety of operating modes to meet diverse testing requirements, including single-phase, three-phase, reverse-phase, and multi-channel configurations. In reverse mode, the voltage can be extended to 200% of the rated voltage. Its robust arbitrary waveform editing function allows for the simulation of various power grid disturbance waveforms, making it an ideal choice for testing and R&D laboratories.
ITECH IT7900EP Series – High Performance Regenerative Grid Simulator
With the adoption of advanced SiC technology, the IT7900EP series high-performance regenerative grid simulator offers a comprehensive test solution. This versatile device functions not only as a grid simulator and four-quadrant power amplifier but also as a four-quadrant regenerative AC/DC electronic load. Its full four-quadrant operation and regenerative capability enable power feedback to the grid, promoting environmental sustainability and significantly reducing electricity and heat dissipation costs.
Designed with a compact, modular, and efficient structure, the IT7900EP delivers up to 21kVA in a 3U single unit, and its power can be extended to 1MVA through master-slave parallel connection. The colorful touch screen with an intuitive GUI allows users to directly define various waveforms. The simulator supports a wide range of operational modes, accommodating single-phase, three-phase, and reverse-phase testing requirements. This high flexibility makes it suitable for applications in PV, ESS, and EV industries.
Request a demo
ITECH IT7900P Series – High Performance Regenerative Grid Simulator
The IT7900P series high-performance regenerative grid simulator provides an all-in-one test solution that can be used not only as a grid simulator and four-quadrant power amplifier, but also as a four-quadrant regenerative AC/DC electronic load. The full four-quadrant operation, regenerative ability can feedback power to the grid, meet the needs of environmental protection, but also saves a lot of electricity and heat dissipation costs. Compact, modular and efficient structure design allows the IT7900P up to 15kVA in 3U single unit, and its power can be extended to 960kVA after master-slave parallel connection. Colorful touch screen with intuitive GUI allows IT7900P to directly define different waveforms. The rich operation modes can meet the test requirement of single-phase, three-phase, inverse-phase and multi-channel. It provides high flexibility for testing and can be widely used in many fields such as PV, ESS and EV.

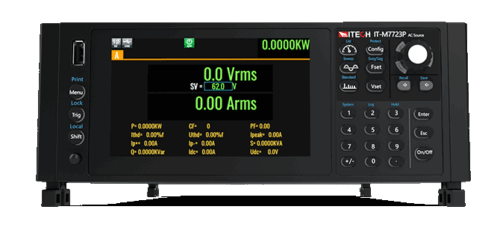

ITECH IT-M7700 Series – High Performance Programmable AC Power Supplies
ITECH IT-M7700 High Performance Programmable AC Power Supply combines intelligence and flexibility, breaks through the huge defects of the traditional AC power source, reduces the size to only 1⁄2 1U, maximizes space utilization. Built-in power meter and arbitrary waveform generator make it convenient to simulate various arbitrary waveform outputs. IT-M7700 is designed with advanced technologies of programmable AC and DC power supplies, and can be widely used in multiple fields such as power energy products, home appliances, industrial electronics, and IEC standards testing.
ITECH IT6500 Series – Wide-Range High-Power DC Power Supplies
With ITECH’s latest technology, the IT6500 series offers a full-featured high-performance power test solution. With fast response these DC power supplies provide users with a new level of power supply performance. From 800W to 30 kW, the whole series include more than 100 models. The maximum output voltage and current is up to 1000V and 1200A respectively. With its autoranging capability, it also has a super wide range of voltage and current applications. Users can choose the power supply that fits their testing requirements perfectly. IT6500C series power supplies provide built-in DIN40839 and ISO-16750-2 testing curves, support solar panel I-V curve simulation function.
ITECH IT6400 Series – Bipolar DC Power Supplies and Battery Simulator
The unique bipolar voltage/current output makes the IT6400 series a bipolar power source or a bipolar electronic load. The battery simulating function is especially applicable for development and high speed production testing of portable, battery-operated products. IT6400 has an ultrafast transient time, less than 20 μs and resolution up to 1 nA. Its new designed speed shift mode achieves voltage/current fast rising and without overshoot, the rising time up to 150μs. Meanwhile, the waveform display function let the test be visible and simple. IT6400 series can be widely used in portable battery-operated products test, mobile power pack test, LED test and other fields.
ITECH IT7300 Series – Programmable AC Power Supplies
In order to meet the bigger range of AC power supply and more complex change characteristics, engineers need more powerful and stable AC power supply to simulate the actual working environment. IT7300 series is the best solution in this area. IT7300 series can be widely applied in the electronics and electrical industry, lighting, specification verification of RD, the use of laboratory testing and factory production online test etc.
