Optical Test Equipment & Measurement Systems
Electro-Meters offers an extensive catalog of optical test equipment and measurement systems to offer you the best option in light analysis. Optical test equipment is used to measure and characterize the properties of light. Communication networks demand highly precise optical test solutions in order to push the limits of their needs. Precision optical measurements are also essential for optical research applications in environmental sensing, biophotonics, and consumer products. Our selection of optical measurement systems feature models from the Yokogawa brand, with a wide array of features and options to give you the right functionality for your application. If you need any assistance in finding the right optical test equipment and measurement systems for your needs, contact our team of experts at Electro-Meters today.

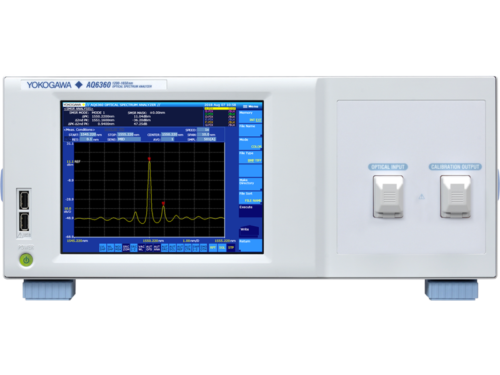

Yokogawa AQ6360 – Telecom Optical Spectrum Analyzers
- Wavelength range: 1200 to 1650 nm
- Wavelength resolution: 0.1 to 2 nm
- High wavelength accuracy: ±0.02 nm
- High dynamic range: 55 dB
- Wide measurement range: +20 to −80 dBm
Yokogawa AQ6370E – Telecom Optical Spectrum Analyzers
- Wavelength Range: 600 nm to 1700 nm
- Wavelength Accuracy: ±0.008 nm (typical)
- Wavelength Resolution: 0.02 nm
- Close-in Dynamic Range: 78 dB (typical)
- Level Range: +20 to -90 dBm
- Up to 2x faster measurement with SMSR mode
- Sharper spectrum measurement with HCDR mode
- Large touchscreen LCD for easy operation and data visualization

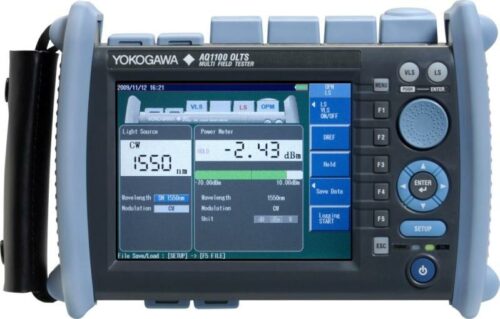

Yokogawa AQ1100 – Multi-function Optical Loss Test Sets
- 5.7 inch color LCD for easy viewing
- Multi-core fiber measurement with a pair set
- Optional PING Test function and Visible light Source
- Optical Power Meter Selections
- Standard: +10 to -70dBm
- High power: +27 to -50dBm
- PON : 1490/1550nm Parallel measurement
- Light Sources (3 models)
- SM1310/1550nm
- SM1310/1550/1625nmMM850/1300nm and SM1310
Yokogawa AQ2170/2170H – Portable Optical Power Meters
- AQ2170 – +10 dBm max. power (Standard)
- AQ2170H – +26 dBm max. power (High Power)
- Up to 7 working wavelengths
- Compact and lightweight
- Versatile data storage and transfer large memory capacity stores up to 999 measurement results
- Auto switching of measurement wavelength
Yokogawa AQ2180/2180H – Portable Optical Power Meters
- AQ2180 – +10 dBm max. power (Standard)
- AQ2180H – +26 dBm max. power (High Power)
- Up to 7 working wavelengths
- Compact and lightweight
- Versatile data storage and transfer large memory capacity stores up to 999 measurement results
- Auto switching of measurement wavelength

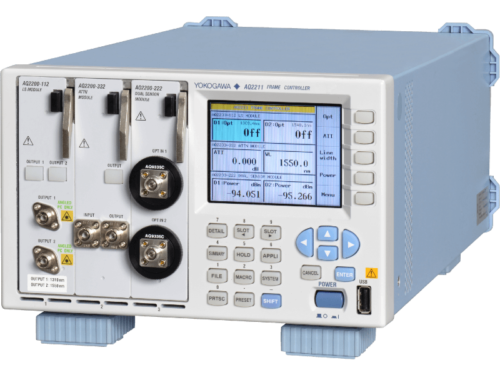

Yokogawa AQ2211 – 3 Slot Frame Controller
- 3 slot Mainframe
- Easy-to-view color display
- USB port for data storage
- Measurement module “hot-swapping” capability
- Remote monitoring and measurement through a LAN
Yokogawa AQ6151B – Optical Wavelength Meter
- High wavelength accuracy: ±0.2 ppm
- Wavelength range (3 types): 900-1700nm, 1200-1700nm, 1270-1650nm
- Measurement time of 0.2 seconds or less
- Up to 1024 wavelengths can be measured at once
- Single wavelength type and multi wavelength type
- Support modulated light and filter measurement
Yokogawa AQ2212 – 9 Slot Frame Controller
- 9 Slot Mainframe
- Easy-to-view color display
- USB port for data storage
- Measurement module “hot-swapping” capability
- Remote monitoring and measurement through a LAN
Yokogawa AQ2200 – Modular Manufacturing Test Systems
- 3 or 9 slot Mainframe
- Hot-swappable modules
- A broad lineup of measurement modules
- Grid tunable laser source, Optical power meter, Optical attenuator, Optical switch, etc.
- Macro Programming Function; a convenient solution for automated measurements eliminating need for an external PC controller.
- Remote interfaces : GP-IB, Ethernet, and USB
- Multi-user function
- Remote Viewer Software
- Stability / Logging Function
Yokogawa AQ2200-131/132 – Grid Light Source Modules
- Frequency (Wavelength): C-band, L-band
- High-stability output level: ± 0.03dB
- High-stability frequency(wavelength): ± 0.3GHz (± 2.4pm)
- Output level: +9dBm or more
- High SMSR: 45dB
