Shunts
Shunts are precision resistors used to measure electric current by producing a proportional voltage drop. They offer accurate current sensing, load balancing, and protection in electrical systems. Essential for industrial, automotive, and power distribution applications, shunts ensure safe and efficient operation by enabling precise current monitoring and control.
Accuenergy DC Current Shunts
- 0.5% accuracy
- 50A to 6000A measurement range
- 75mV rated voltage output
Canadian Shunt A Series Manganin Shunts
- 50 mV: ( 1,500 A to 6,000 A )
- 100 mV: ( 1,500 A to 6,000 A )
- Standard Accuracy ±0.25%
- Designed for switchboard applications
Canadian Shunt C Series Manganin Shunts
- 50 mV: ( 1 A to 500 A )
- 100 mV: ( 1 A to 500 A )
- Standard Accuracy: ±0.25%

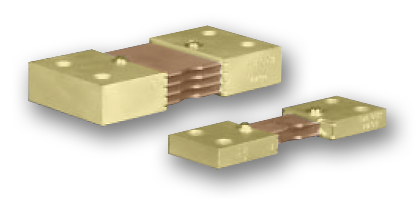

Canadian Shunt E Series Manganin Shunts
- 50 mV: ( 300 A to 1,200 A )
- 100 mV: ( 300 A to 1,200 A )
- Standard Accuracy: ±0.25%
Canadian Shunt FL Series Manganin Shunts
- 50 mV: ( 1,000 A to 3,000 A )
- 100 mV: ( 1,000 A to 3,000 A )
- Standard Accuracy: ±0.25%
Canadian Shunt G Series Manganin Shunts
- 50 mV: ( 75 A to 2,500 A )
- 100 mV: ( 75 A to 2,500 A )
- Standard Accuracy: ±0.25%
Canadian Shunt H Series Manganin Shunts
- 50 mV: ( 2,500 A to 30,000 A )
- 100 mV: ( 2,500 A to 30,000 A )
- Standard Accuracy: ±0.25%
Canadian Shunt K Series Manganin Shunts
- 50 mV: ( 1000 A to 10,000 A )
- 100 mV: ( 600 A to 6000 A )
- Single or multi-bladed
- Standard Accuracy: ±0.25%
Canadian Shunt LA Series Manganin Shunts
- 5 – 150 Amps in 50 millivolt
- 5 – 150 Amps in 100 millivolt
- Complies with AA5524 specifications
- Standard Accuracy: : ±0.25%
- Ratings from 10 through 150 amps in both 50mV and 100mV outputs
