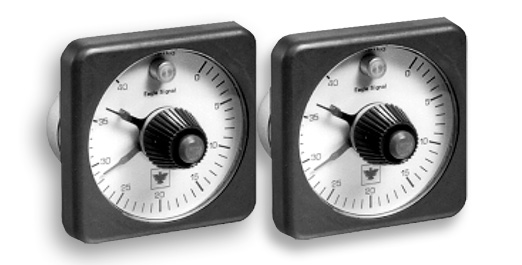

Eagle Signal 191 Series – Pushbutton Reset Timer
Notice: This product has been discontinued.
- Panel Mount, easy operation
- Dial and Push-button operation
- Time delay or Time interval to control load circuits
- UL Recognition E61735, CSA Recognition LR27967
SEND US A MESSAGE
CONTACT INFORMATION
Do you have questions about how we can help your company? Send us an email and we’ll get in touch shortly.
Description
The Model 191 is a push-button start, motor driven timer with cycle progress pointer, double, make-double break snap action switch and is used to energize a load for a preset time period. The pushbutton is located in the center of the time set pointer knob on the panel mounted dial. When depressed momentarily, a mechanical latch and switch is engaged, starting the motor and timing period. After completion of timing, switch 3 and 4 open, 1 and 2 close, motor stops, and timer resets to setpoint. Timer is now ready for another timing operation.
