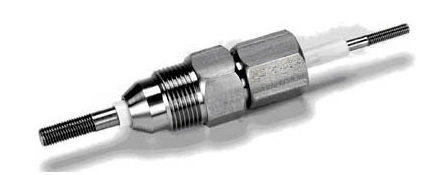

Conax EG Series – Power Compression Seal Feedthrough
- Seals 1 Electrode or Element
- For Gas or Non-Conductive Liquid
- Stainless Steel Reusable Fitting
- “Soft Sealant”
- Electrode Easily Assembled or Replaced in Field
SEND US A MESSAGE
CONTACT INFORMATION
Do you have questions about how we can help your company? Send us an email and we’ll get in touch shortly.
Description
These glands are used for bare electrical feedthroughs in such applications as vacuum furnaces, liquid level probes, transformers, environmental chamber power leads, etc. And are ideal for electrically and or thermally isolate electrodes, tubes or temperature sensors.
- Wires Easily Assembled or Replaced In Field
- Temperature Range From -300°F to +1600°F (-185°C to +870°C)
- Pressure: Vacuum to 8,000 PSI (551 bar)
- Voltage: To 2000 VDC
- Amperage: To 400A
- Available Without Electrode
- Reusable
Downloads
