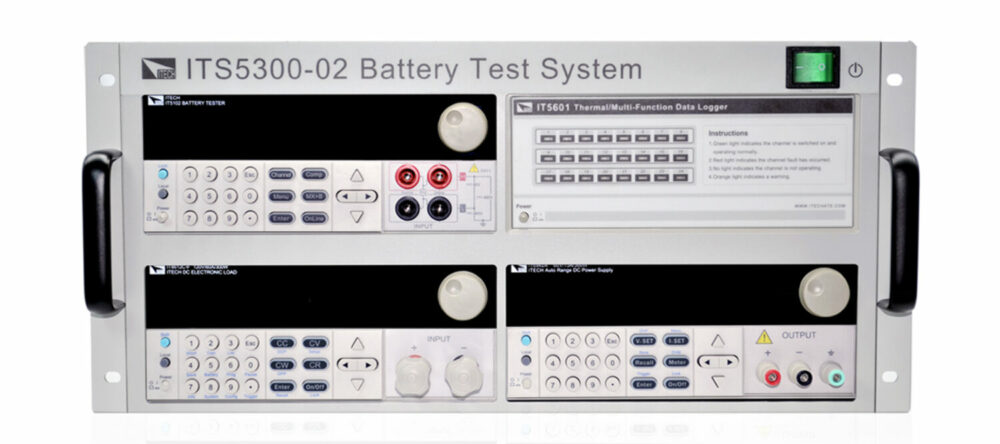

ITECH ITS5300 – Battery Test Charge & Discharge System

ITECH’s ITS5300 is the most accurate battery testing system, and includes ITECH’s power supply and electronic load, internal resistance tester, temperature capture card and ITS5000 battery test software. With this system it is possible to do a charge test in CC/CV and a discharge test for a CC/CR/CP for multi-channel single battery/battery pack simultaneously. Moreover, it can monitor voltage, temperature, and internal resistance of each single battery, generate charge-discharge curves and save test data.

SEND US A MESSAGE

    This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

    CONTACT INFORMATION

    900 McKay Road, Unit 2
    Pickering, Ontario
    Canada, L1W 3X8

    Phone: (905) 428-3413
    Toll Free: (800) 617-3413

    sales@electro-meters.com

    Do you have questions about how we can help your company? Send us an email and we’ll get in touch shortly.

    Description
    • Balance charging and discharging capacity, designed for battery module / cell test.
      • Charge mode: CC / CV / pulse charge
      • Discharge mode: CC / CR / CP / pulse discharge
      • Voltage range: 0 – 1000V
      • Current range: 0 – 1200A
      • Power range: 0 – 600 kW
    • Fast response and high-speed sampling rate, sampling rate and data storage time down to 1ms.
    • High reliability and high precision guarantee absolute measurement accuracy within the broad voltage/current range, making the test system more efficient in use.
      • Voltage: 0.05% +30 mV
      • Current: 0.2% +120 mA
    • Standard modular design not only makes it easy for hardware extension and follow-up maintenance but also expand its applications.
    • Real-time online monitoring on single module resistance, voltage and temperature.
    • Support cell battery AC internal resistance analysis and battery pack
    • DC internal resistance analysis. Measured temperature depends on the type of thermocouple user selected.
    • A complete alarm and protection setup for effectively preventing overcharge, over-discharge and other unexpected faults.
    • Adopt GPIB communication, support multi-system extension.
    • Multi-channel independent control.
    Additional information
    Approvals

    SPE-1000
