Magtrol Torque Transducers
Provides excellent long-term stability and reliability using a highly accurate non-contact measuring technique. Special units made to customer requirements are available.
SEND US A MESSAGE
CONTACT INFORMATION
Do you have questions about how we can help your company? Send us an email and we’ll get in touch shortly.
In-Line Torque Sensors
Magtrol’s In-Line Torque Transducers deliver precise torque and speed measurement over a very broad range. Each model has an integrated conditioning electronic module providing 0 to ±10 V DC torque output and an open collector speed output.
Torque Flange Sensors
With its compact, bearingless, maintenance-free design, the new TF Torque Flange Sensor from Magtrol brings many appealing advantages to torque measurement applications. The TF’s high torsional rigidity supports direct mounting on the machine shaft or flange, avoiding the use of couplings on one side. This allows easy integration into a test system, shortens the overall length of the test bench and reduces costs.
CTS Cogging Test System
Magtrol offers three types of Dynamometers, each with a different braking system to absorb load: hysteresis, Eddy-current and powder. Magtrol’s dynamometers, electronics and software are used for testing all types of electric and pneumatic motors, gas engines and gearheads, as well as servo drives and inverters.
Products include:
- Hysteresis Dynamometers (HD Series)
- Micro Dyne System
- WB 23 and WB 27 High-Speed Eddy-Current Dynamometers
- WB Series Eddy-Current Dynamometers
- PB Series Powder Brake Dynamometers
- And more
Reaction Torque Sensors
Based on strain-gauge technology, the RT Sensor provides highly accurate signal transmission.
Torque Software
Magtrol’s TORQUE 10 Software is an easy to use Windows® executable program, used to automatically collect torque, speed, mechanical power and angle data from Magtrol TS Series Torque Sensors or Magtrol TM Series Torque Sensors by using Model 3411 Torque Display. The data can be printed, displayed graphically or quickly saved/exported as a Microsoft® Excel spreadsheet.
Conditioners, Displays, & Power Supplies
Magtrol’s Model 3411 Torque Display is designed for use with all Magtrol TM, TMHS, TMB and TF Torque Transducers. This easy-to-use device powers the transducer and utilizes high speed processing to display torque, speed and mechanical power.

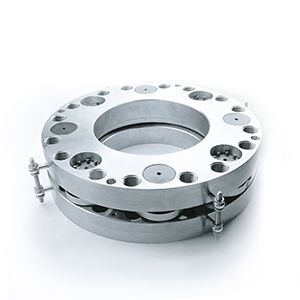

Couplings
Magtrol offers couplings for our TM Series Torque Transducers, TS Series Torque Sensors and TF Torque Flange Sensors.
