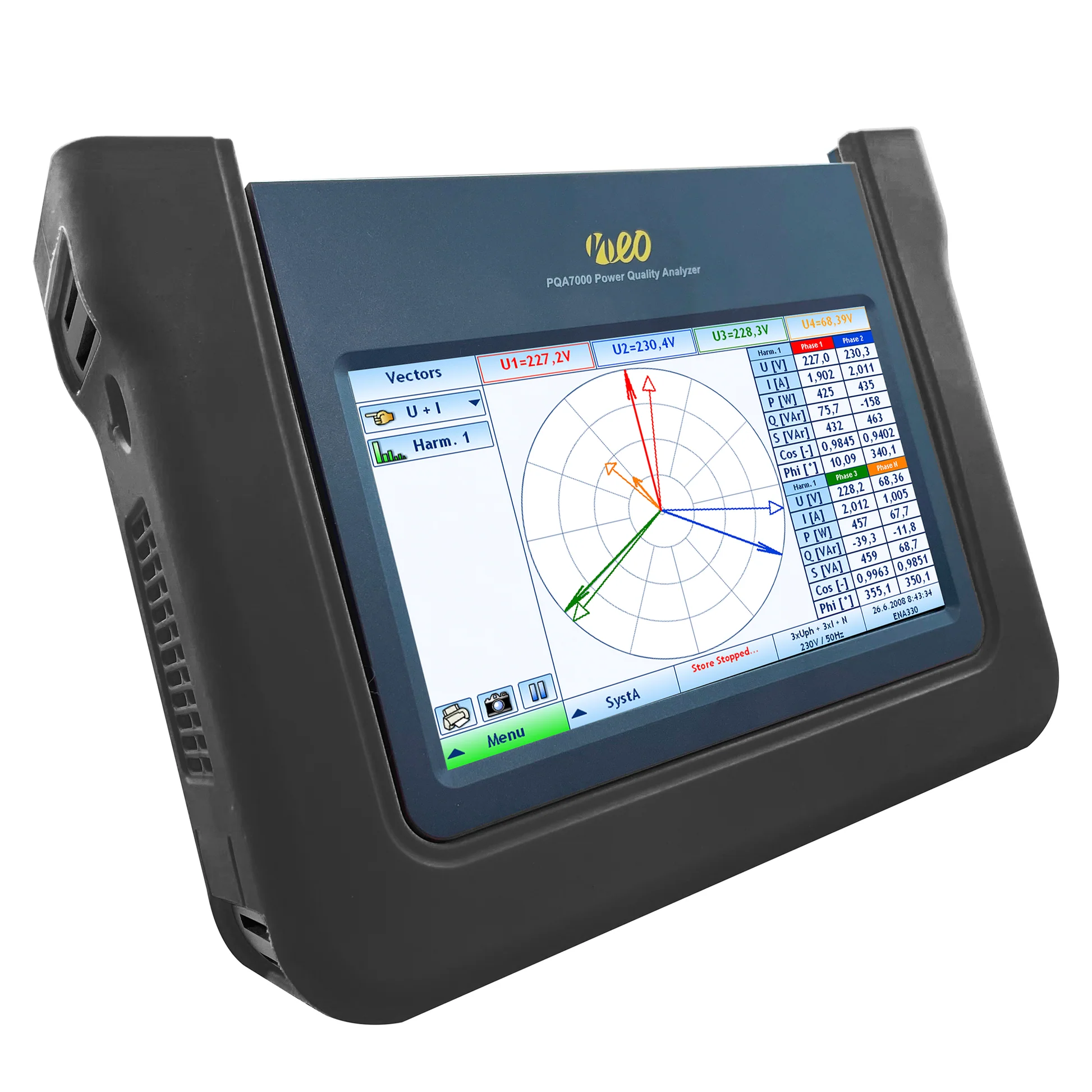

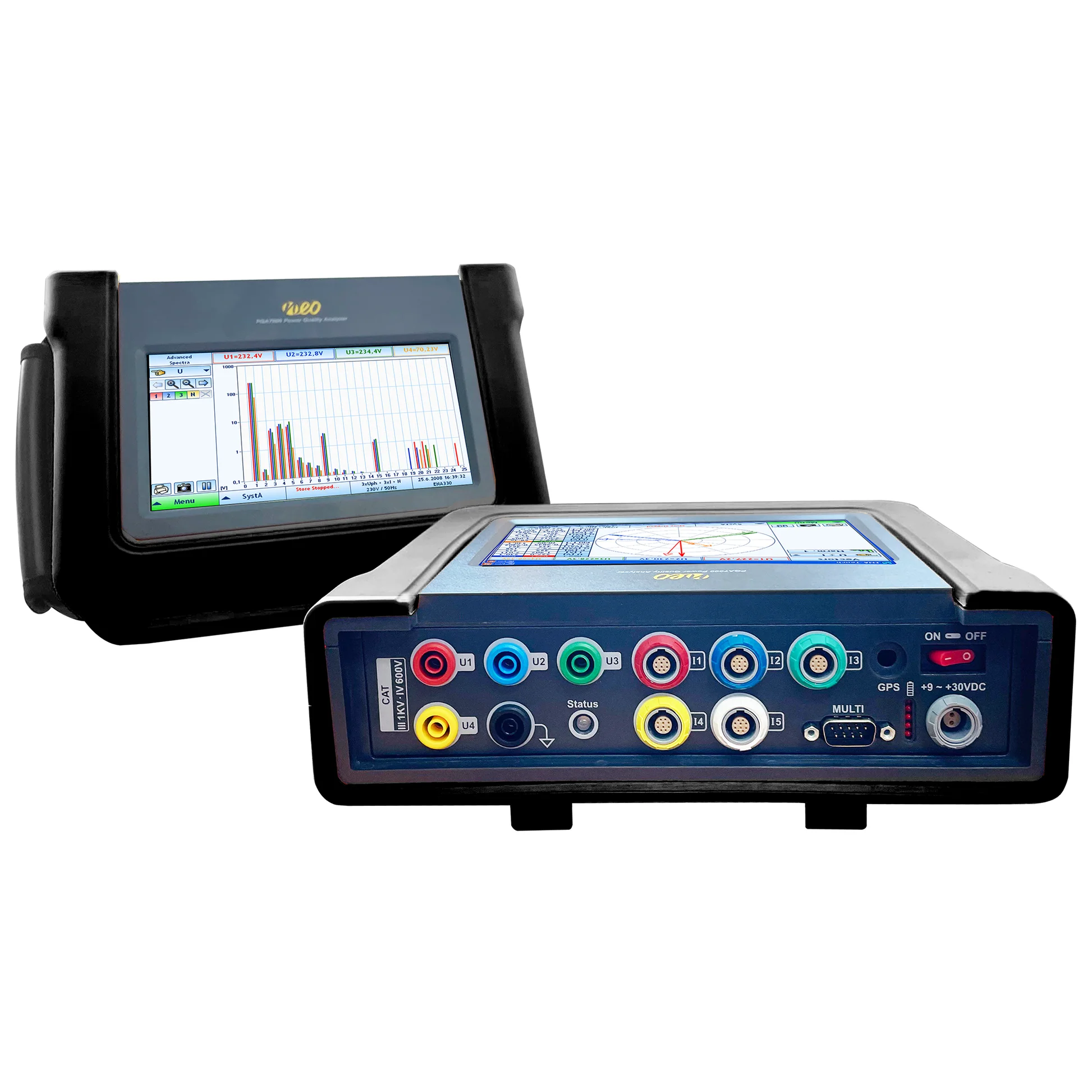

NEO Messtechnik PQA 7000 – Mobile Power Quality Analyzer
The NEO PQA7000 is the complete package mobile power quality analyzer. Featuring Multi-Touch, 6 hours mobile operation and complying with Power Quality Standards and Grid Codes your measurement application requires. Class A Power Quality Analyzer for measurements and analyses way beyond EN50160.
SEND US A MESSAGE
CONTACT INFORMATION
Do you have questions about how we can help your company? Send us an email and we’ll get in touch shortly.
Description
Hardware
- 7 inch multi-touch display – or completely without display
- Up to 6 hours of operation
- Sensor Supply for current clamps and sensors (uni- and bipolar)
- GPS for highly-precise time synchronization
- Up to 256GB data storage
- Interfaces: USB 3.0, TCP/IP, LAN, Wifi, Bluetooth, RS232, Modbus, 104, DIO, and CAN.
Features
- High Accuracy: 0.05%
- High Sampling Rate: 48kS/s
- High Resolution: 24bit
- Voltage Range: 1600V / 800V
- High Safety: CAT IV 600V
- Power Quality: Class A
- Bandwidth: 20 kHz
- High Dynamic: 0.5mA to 150kA
- High Performance: PC with Multi-Touch and battery pack
- High Connectivity: additional input signals, Interfaces, AC&DC power, etc.
- Visualizations: Recorder, Waveform, FFT, Vector, Table, etc.
- System Dynamics: Resonances, Phase Angle Jumps, etc.
- Transient Recording: Waveform & Disturbance Trigger
- Disturbance: 1/2 Period storing & triggering
- Phasor Measurement Unit(PMU) and RoCoF
- Standard and Certifications: IEC61010-1 (2011) / IEC61010-2-030 / IEC 61000-4-3 / IEC 61000-4-4 / LVD Directive 2014 / EMC Directive 2014/ Rohs Directive 2015/ EN 61000-3-2 / EN 61000-3-3 / EN 61326-1 / EN 55011 +A1, Class A
Additional information
| Approvals | SPE-1000 |
|---|
