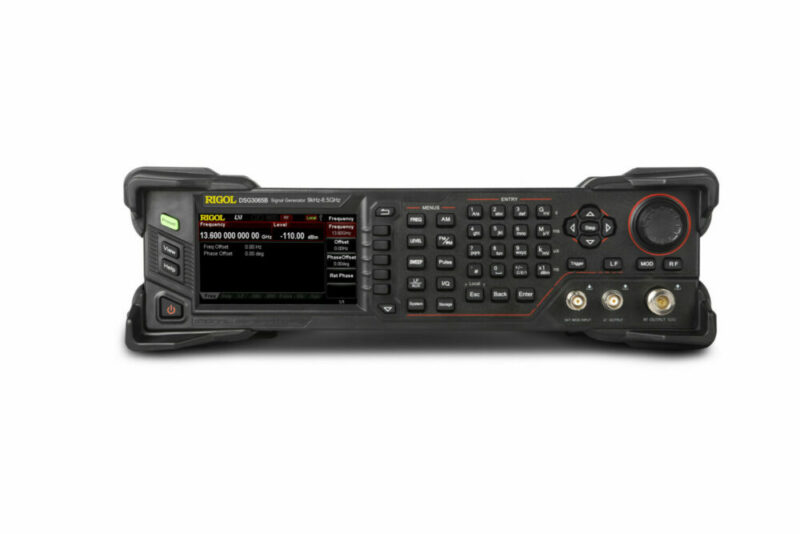

Rigol DSG3000B Series – RF Signal Generators
- Maximum Frequency of 6.5- 13.6 GHz
- Up to -116 dBc/Hz (typical) phase noise
- Up to +23 dBm (typical) maximum output power
- Higher level of amplitude accuracy, up to 0.5 dB (typical)
SEND US A MESSAGE
CONTACT INFORMATION
Do you have questions about how we can help your company? Send us an email and we’ll get in touch shortly.
The DSG3000B Series offers continuous wave high power carriers up to 13.6 GHz, standard AM/FM/ØM analog modulation up to 3.6 GHz, and I/Q modulation and I/Q baseband output up to 6.5 GHz on the models ending in “IQ”. The DSG3065B has a maximum frequency of 6.5 GHz and the DSG3136B outputs all the way to 13.6 GHz. Featuring a high signal purity with phase noise measuring <-116dBc/Hz@20kHz (typical) and a wide output range of -130dBm to +25dBm, the DSG3000B RF signal generator has optional pulse modulation and pulse train generation with the DSG3000B-PUG option. The DSG3000 series also has an amplitude accuracy of <0.5dB (typical).
Features
- Up to -116 dBc/Hz (typical) phase noise
- Up to +25 dBm (typical) maximum output power
- Output amplitude range: -130 dBm to +27 dBm (setting range)
- High signal purity, phase noise: <-116 dBc/Hz@20 kHz (typical)
- Standard 1 ppm internal clock; optional 5 ppb high stable clock
- Standard AM/FM/ΦM analog modulation
- Support pulse modulation; on/off ratio up to 70 dB; user-defined pulse train generator
- I/Q modulation and I/Q baseband output
- All modulations support internal and external modulation modes
- Standard 2U height design to save rack space; rack mount kit is available
- Support USB/LAN/GPIB remote control; SCPI command set
- Wear-free electronic attenuator design
| Manufacturers | |
|---|---|
| Model | DSG3065B ,DSG3065B-IQ ,DSG3136B ,DSG3136B-IQ ,DSG3065B-OCXO ,DSG3065-IQ-OCXO ,DSG3136B-OCXO ,DSG3136B-IQ-OCXO |
| Approvals | cTUVus |
