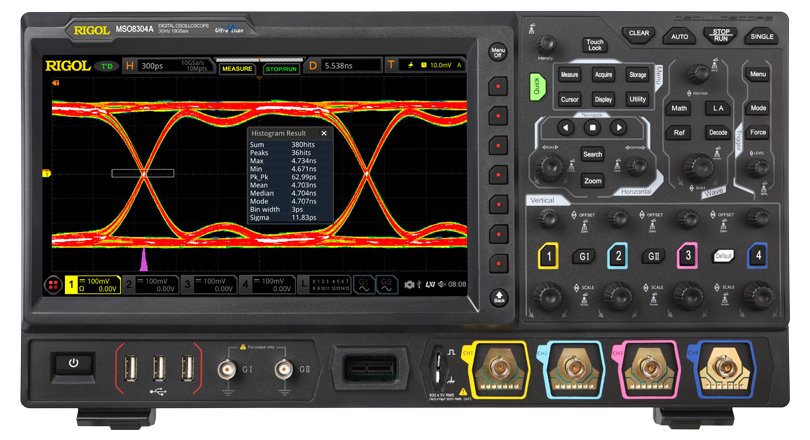

Rigol MSO8000A Series – Mixed Signal Oscilloscopes

The MSO8000A series digital oscilloscope, built on RIGOL’s “Phoenix” chipset, incorporates the cutting-edge UltraVision II Technology Platform. This advanced platform enables the oscilloscope to achieve a remarkable data acquisition capability of up to 10 GSa/s sample rate, resulting in enhanced integration of all necessary analog front-end (AFE) function modules. As a result, the digital oscilloscope’s consistency and reliability are significantly improved.

The UltraVision II technical platform introduces several noteworthy features, including a higher waveform capture rate, comprehensive digital trigger technology, and full memory hardware measurement technology. Moreover, the MSO8000A series digital oscilloscope combines multiple instrument modules such as MSO, arbitrary waveform generator, digital voltmeter, 6-digit counter and totalizer, and protocol analyzer. This integration of diverse functionalities provides users with an exceptional experience at an unprecedented price point.

Features

• 12 bit resolution
• Up to 10 GSa/s real-time sample rate
• Up to 500 Mpts memory depth (standard)
• High waveform capture rate (over 600,000 waveforms per second)
• Up to 450,000 frames of hardware real-time and ceaseless waveforms recording and playback
• Integrates 7 independent instruments into 1
• Analog bandwidth: 750 MHz, 1.5 GHz, and 2 GHz (single-channel and half-channel modes)
  • Upgradable, up to 3 GHz
• 10.1-inch capacitive multi-touch screen. 256-level intensity grading display, with color persistence
• Web Control and VNC remote command
• Waveform histogram analysis (standard)
• Auto measurement of 41 waveform parameters; full-memory hardware measurement function
