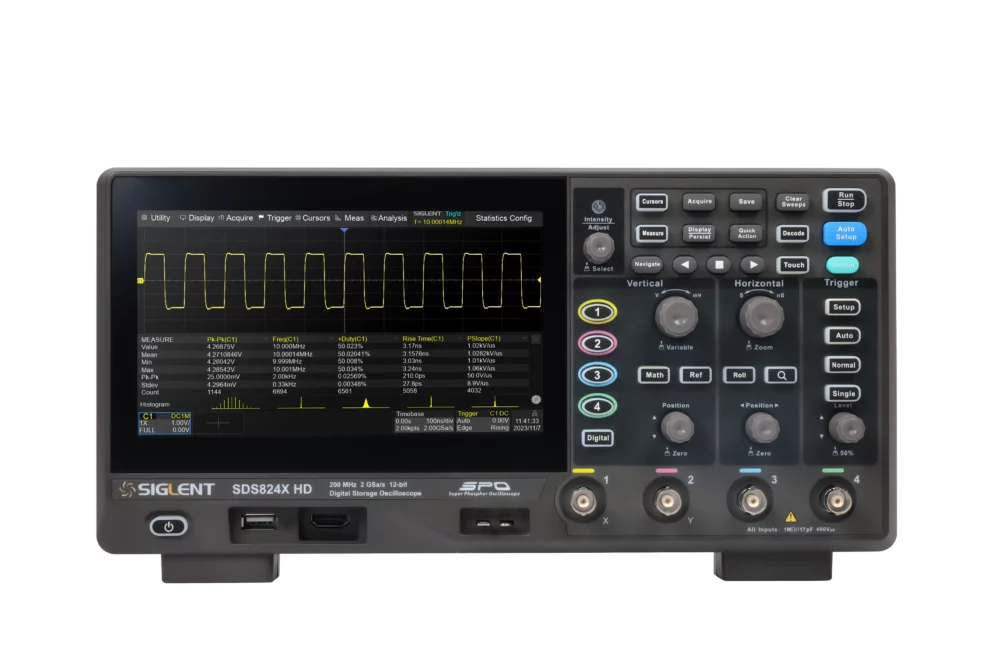

Siglent SDS800X HD – Digital Oscilloscope

The SDS800X HD series of high-resolution digital storage oscilloscopes from SIGLENT utilize 2 GSa/s, 12-bit Analog-Digital Converters, and front ends known for their exceptional noise floor performance. These oscilloscopes are offered in bandwidths of 200 MHz, 100 MHz, and 70 MHz, featuring a maximum record length of 100 Mpts. They provide the capability to display 2/4 analog channels alongside 16 digital channels for mixed signal analysis.

Incorporating Siglent’s SPO technology, the SDS800X HD series boasts a maximum waveform capture rate of up to 120,000 wfm/s in normal mode (up to 500,000 wfm/s in Sequence mode). The oscilloscopes also feature a 256-level intensity grading display function and a color temperature display mode. An innovative digital trigger system with high sensitivity and low jitter is employed, supporting various powerful triggering modes, including serial bus triggering.

These oscilloscopes come equipped with tools such as History waveform recording, Search and Navigate functions, Mask Test, Bode Plot, and Power Analysis, enabling the capture, storage, and analysis of extended waveform records. Additionally, the SDS800X HD series offers an extensive range of measurement and mathematical capabilities, options for a 25 MHz arbitrary waveform generator, and support for serial decoding.

The 7″ display capacitive touch screen supports multi-touch gestures and features a user-friendly UI design to enhance operational efficiency. The oscilloscopes also support mouse control and allow for remote web control over LAN.
