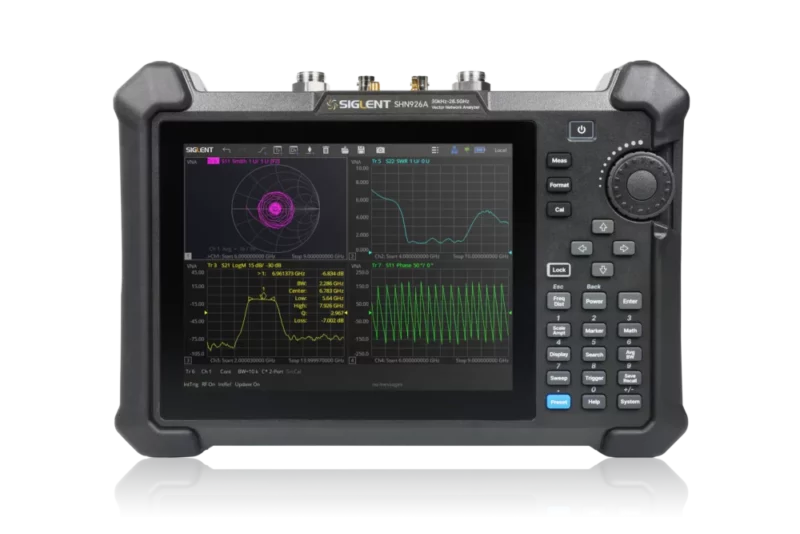

Siglent SHN900A Portable Vector Network Analyzer

The SHN900A series portable vector network analyzer, with a frequency range up to 26.5GHz, integrates vector network analysis, time domain analysis, spectrum analysis, and standard cable and antenna analysis. It is specifically designed for portable and flexible testing of RF components, cables, and systems in R&D, production, maintenance, communications, antenna base stations, and automotive electronics.

The SHN900A features a portable, user-friendly design for complex RF measurements. It functions as a cable and antenna tester with built-in DC voltage bias, a full 2-port vector network analyzer with advanced TDR measurements, pulse measurements, pass-fail limit testing, and comprehensive S-parameters. The SHN900A is a highly integrated, multi-mode RF test system suitable for field and production line use, with a 4-hour battery life and a robust mechanical design to handle demanding environments.

Key Features

• Frequency Range: 30 kHz~26.5 GHz
• Frequency resolution: 1 Hz
• Level resolution: 0.01 dB
• Range of IFBW: 10 Hz~3 MHz
• Dynamic Range: 110 dB (typ.)
• Standard CAT/DTF Measurement
• Standard Bias-Tee for external measured objects
• Standard GPS, Time and Location Information Saving
• Typical working time 4 hours, 3.2 kg net weight, 8.4 lnch Multi-Touch Screen
• Types of measurement: Scattering-parameter measurement, differential-parameter measurement, receiver measurement, time-domain parameter analysis, limit test, ripple test, impedance conversion, fixture simulation, adapter removal/insertion, enhanced time-domain parameter analysis (TDR), spectrum analysis, frequency offset, scalar mixer measurement, pulse measurement
