Texmate BX-35 Lynx Series – Modular Digital Meters

A versatile panel meter that utilizes many different types of modular plug-in signal conditioners.

• External transmitters or signal conditioners can be eliminated by direct connection of the sensor output to more than 38 Plug-in Input Signal Conditioners that include:
  • AC/DC Current
  • AC/DC Voltage
  • Load Cell
  • Pressure
  • Process
  • Prototype
  • Resistance
  • Temperature*
  • 4 to 20 mA
• Pre-calibrated I-Series Input Signal Conditioning modules, that have span or zero potentiometers, can be interchanged between any I-Series compatible meter, without recalibration, because all of the analog scaling and reference circuitry is self-contained within the module.
• 24 V DC excitation is available to power external transmitters and 5 or 10 V DC excitation is available for strain-gages, load cells and resistance bridge type sensors.
• Auto-sensing AC/DC power supply. For voltages between 85-265 V AC / 95-370 V DC (PS1) or 15-48 V AC / 10-72 V DC (PS2).

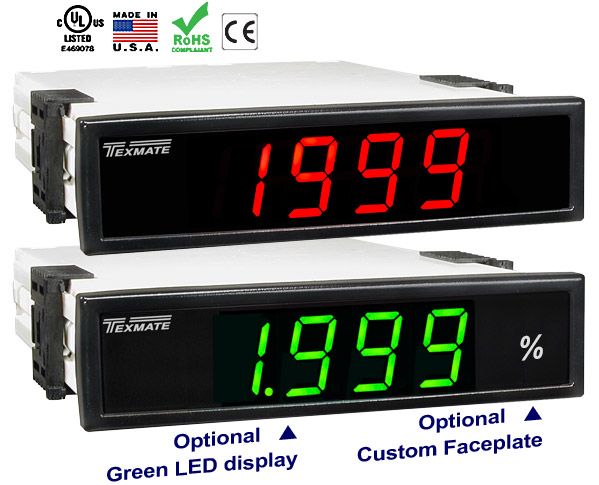

• Standard red or optional green or super bright red 3 1/2-digit 0.56” LED with display range –1999 to 1999 (4000 counts).
• Display brightness may be externally controlled
• 1/16 DIN (96 x 24mm ) case easily mounts in thin or thick panels (up to 2”).
