A versatile digital panel meter with standard or large display, for monitoring and measurement applications.
- External transmitters or signal conditioners can be eliminated by direct connection of the sensor output to more than 38 Plug-in Input Signal Conditioners that include:
- AC/DC Current
- AC/DC Voltage
- Load Cell
- Pressure
- Process
- Prototype
- Resistance
- Temperature*
- 4 to 20 mA
- Pre-calibrated I-Series Input Signal Conditioning modules, that have span or zero potentiometers, can be interchanged between any I-Series compatible meter, without recalibration, because all of the analog scaling and reference circuitry is self-contained within the module.
- 24 V DC excitation is available to power external transmitters and 5 or 10 V DC excitation is available for strain-gages, load cells and resistance bridge type sensors.
- AC/DC Auto-sensing power supply. For voltages between 85-265 V AC / 95-370 V DC (PS1) or 15-48 V AC / 10-72 V DC (PS2).

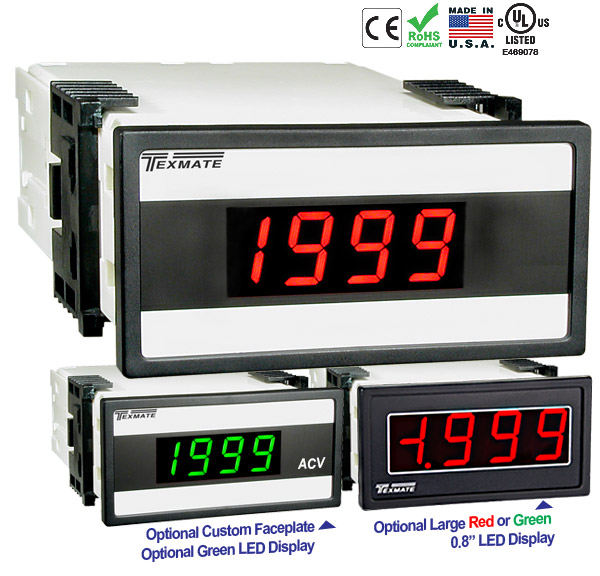

- Standard red or optional green or super bright red 3 1/2-digit 0.56” LED with display range –1999 to 1999 (4000 counts).
- Red or green 0.8″ LED large display option.
- Display brightness may be externally controlled.
- 1/8 DIN (96 x 48mm) case easily mounts in thin or thick panels (up to 2’). May be ordered with optional extra fire resistant metal case.
- Optional NEMA-4X, IP-65 hinged, lockable, water and dust proof cover.
