Yokogawa AB-40 & DB-40 103 Series – Switchboard Meters
- 4.5″ size
- Well gasketed with metal can shield (Rugged, High accuracy meter, 250° Deflection)
- Water resistant construction
- Shock resistant Pivot and jewel movement
- Tracking: ± 1 1/2% DC; ± 2% AC ; vertical mounting
- ± 2% AC – rectifier type – low voltage only (60 Hz sine wave)
- AC (transducer driven ±1% of full scale)
- Repeatability: ± 0.5% DC and rectifier type
- Optional LED Illumination
SEND US A MESSAGE
CONTACT INFORMATION
Do you have questions about how we can help your company? Send us an email and we’ll get in touch shortly.
Description
Yokogawa The 103 series of switchboard meters are UL/CSA recognized and are typically accurate to within ±1% of full scale. The 103 series offers interchangeable 250 degree linear scales that provide greater resolution and easier to read values. Scaling can be easily modified by exchanging the numeral scale or the division scale with the appropriate combination. The meter is electrically shielded by a metal can. Both the front cover and the rear of the meter are gasketed, protecting the switchboard from dust ingress.
Yokogawa provides a full range of 250° deflection Switchboard meters including:
- AC & DC Voltmeters
- AC & DC Ammeters, shunt rated or self contained
- Expanded scale meters
- Frequency Meters

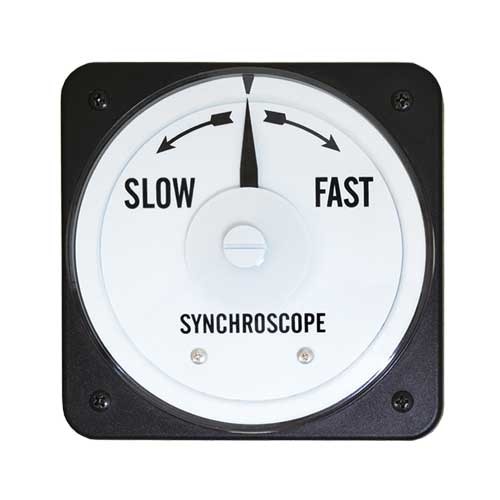

- Synchroscopes
- Power Factor Meters
- Watts & Var Meters
- Temperature Indicators
- Tachometer indicators
- Specialized Hybrid meters ( digital and analog Displays )
- Counters
- RTD Temperature
Applications
- Control room applications
- Marine Applications
- Ideal for adverse (dusty) environments or severe applications, meets UL-1437, IEC 144 or IP54
- Ideal for OEM and Retrofit applications
